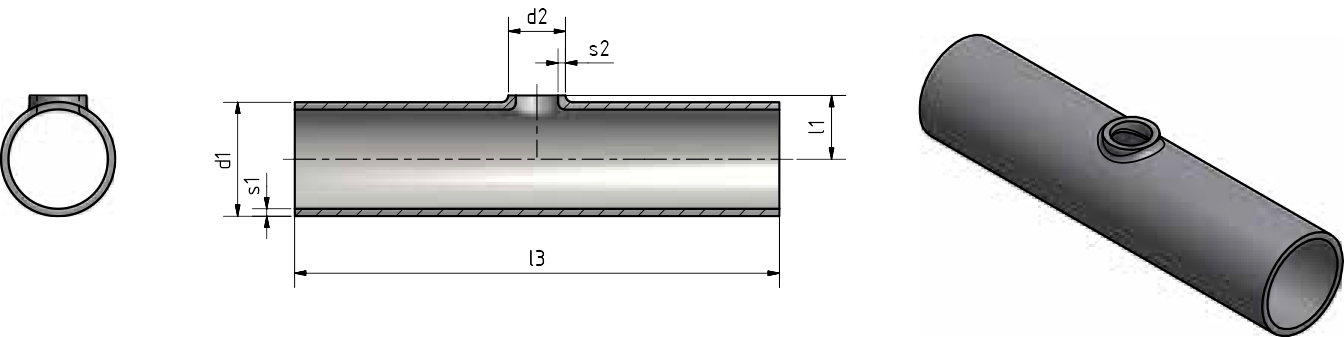

CALOWE
|
Imperial |
d1 x d2 |
s1 |
s2 |
l3 |
l1 |
|
Cal |
mm |
||||
|
3/4 x 1/2 |
19.05 x 12.70 |
1.65 |
1.65 |
101.60 |
11.03 |
|
1 x 1/2 |
25.40 x 12.70 |
1.65 |
1.65 |
108.00 |
14.20 |
|
1 x 3/4 |
25.40 x 19.05 |
1.65 |
1.65 |
108.00 |
14.20 |
|
1 1/2 x 3/4 |
38.10 x 19.05 |
1.65 |
1.65 |
120.60 |
20.55 |
|
1 1/2 x 1 |
38.10 x 25.40 |
1.65 |
1.65 |
120.60 |
20.55 |
|
1 1/2 x 1 1/2 |
38.10 x 38.10 |
1.65 |
1.65 |
120.60 |
21.05 |
|
2 x 1 |
50.80 x 25.40 |
1.65 |
1.65 |
146.00 |
26.90 |
|
2 x 1 1/2 |
50.80 x 38.10 |
1.65 |
1.65 |
146.00 |
27.40 |
|
2 1/2 x 1 1/2 |
63.50 x 38.10 |
1.65 |
1.65 |
158.80 |
33.75 |
|
2 1/2 x 2 |
63.50 x 50.80 |
1.65 |
1.65 |
158.80 |
35.25 |
|
2 1/2 x 2 1/2 |
63.50 x 63.50 |
1.65 |
1.65 |
158.80 |
35.25 |
|
3 x 1 |
76.20 x 25.40 |
1.65 |
1.65 |
171.50 |
40.60 |
|
3 x 1 1/2 |
76.20 x 38.10 |
1.65 |
1.65 |
171.50 |
40.10 |
|
3 x 2 |
76.20 x 50.80 |
1.65 |
1.65 |
171.50 |
41.60 |
|
3 x 2 1/2 |
76.20 x 63.50 |
1.65 |
1.65 |
171.50 |
41.60 |
|
4 x 1 1/2 |
101.60 x 38.10 |
2.11 |
1.65 |
209.60 |
53.80 |
|
4 x 2 |
101.60 x 50.80 |
2.11 |
1.65 |
209.60 |
54.30 |
|
4 x 2 1/2 |
101.60 x 63.50 |
2.11 |
1.65 |
209.60 |
54.30 |
|
4 x 3 |
101.60 x 76.20 |
2.11 |
1.65 |
209.60 |
55.80 |
ISO / DIN 11865
|
ISO/DIN 11865 |
d1 x d2 |
s1 |
s2 |
l3 |
l1 |
|
DN/NW |
mm |
||||
|
10 x 8 |
17.20 x 13.50 |
1.60 |
1.60 |
68.00 |
10.10 |
|
15 x 8 |
21.30 x 13.50 |
1.60 |
1.60 |
72.00 |
12.15 |
|
15 x 10 |
21.30 x 17.20 |
1.60 |
1.60 |
72.00 |
12.15 |
|
20 x 10 |
26.90 x 17.20 |
1.60 |
1.60 |
110.00 |
14.95 |
|
20 x 15 |
26.90 x 21.30 |
1.60 |
1.60 |
110.00 |
14.95 |
|
25 x 15 |
33.70 x 21.30 |
2.00 |
1.60 |
120.00 |
18.35 |
|
25 x 20 |
33.70 x 26.90 |
2.00 |
1.60 |
120.00 |
18.35 |
|
32 x 15 |
42.40 x 21.30 |
2.00 |
1.60 |
130.00 |
22.70 |
|
32 x 20 |
42.40 x 26.90 |
2.00 |
1.60 |
130.00 |
22.70 |
|
32 x 25 |
42.40 x 33.70 |
2.00 |
2.00 |
130.00 |
22.70 |
|
40 x 15 |
48.30 x 21.30 |
2.00 |
1.60 |
130.00 |
25.65 |
|
40 x 20 |
48.30 x 26.90 |
2.00 |
1.60 |
130.00 |
25.65 |
|
40 x 25 |
48.30 x 33.70 |
2.00 |
2.00 |
130.00 |
25.65 |
|
40 x 32 |
48.30 x 42.40 |
2.00 |
2.00 |
130.00 |
26.15 |
|
50 x 20 |
60.30 x 26.90 |
2.00 |
1.60 |
180.00 |
32.65 |
|
50 x 25 |
60.30 x 33.70 |
2.00 |
2.00 |
180.00 |
31.65 |
|
50 x 32 |
60.30 x 42.40 |
2.00 |
2.00 |
180.00 |
32.15 |
|
50 x 40 |
60.30 x 48.30 |
2.00 |
2.00 |
180.00 |
32.65 |
|
65 x 25 |
76.10 x 33.70 |
2.00 |
2.00 |
220.00 |
40.55 |
|
65 x 32 |
76.10 x 42.40 |
2.00 |
2.00 |
220.00 |
40.05 |
|
65 x 40 |
76.10 x 48.30 |
2.00 |
2.00 |
220.00 |
40.55 |
|
65 x 50 |
76.10 x 60.30 |
2.00 |
2.00 |
220.00 |
41.55 |
|
80 x 32 |
88.90 x 42.40 |
2.30 |
2.00 |
260.00 |
46.95 |
|
80 x 40 |
88.90 x 48.30 |
2.30 |
2.00 |
260.00 |
46.95 |
|
80 x 50 |
88.90 x 60.30 |
2.30 |
2.00 |
260.00 |
47.95 |
|
80 x 65 |
88.90 x 76.10 |
2.30 |
2.00 |
260.00 |
49.45 |
|
100 x 50 |
114.30 x 60.30 |
2.30 |
2.00 |
320.00 |
60.65 |
|
100 x 65 |
114.30 x 76.10 |
2.30 |
2.00 |
320.00 |
62.15 |
|
100 x 80 |
114.30 x 88.90 |
2.30 |
2.30 |
320.00 |
62.15 |
METRYCZNE / DIN 11865
|
Metryczny DIN 11865 |
d1 x d2 |
s1 |
S2 |
l3 |
l1 |
|
DN/NW |
mm |
||||
|
15 x 10 |
19.00 x 12.00 |
1.50 |
1.00 |
70.00 |
11.00 |
|
15 x 10 |
19.00 x 13.00 |
1.50 |
1.50 |
70.00 |
11.00 |
|
20 x 10 |
23.00 x 12.00 |
1.50 |
1.00 |
80.00 |
13.00 |
|
20 x 10 |
23.00 x 13.00 |
1.50 |
1.50 |
80.00 |
13.00 |
|
20 x 15 |
23.00 x 19.00 |
1.50 |
1.50 |
80.00 |
13.00 |
|
25 x 10 |
29.00 x 12.00 |
1.50 |
1.00 |
100.00 |
16.00 |
|
25 x 10 |
29.00 x 13.00 |
1.50 |
1.50 |
100.00 |
16.00 |
|
25 x 15 |
29.00 x 19.00 |
1.50 |
1.50 |
100.00 |
16.00 |
|
25 x 20 |
29.00 x 23.00 |
1.50 |
1.50 |
100.00 |
16.00 |
|
32 x 15 |
35.00 x 19.00 |
1.50 |
1.50 |
110.00 |
19.00 |
|
32 x 20 |
35.00 x 23.00 |
1.50 |
1.50 |
110.00 |
19.00 |
|
32 x 25 |
35.00 x 29.00 |
1.50 |
1.50 |
110.00 |
19.00 |
|
40 x 20 |
41.00 x 23.00 |
1.50 |
1.50 |
120.00 |
22.00 |
|
40 x 25 |
41.00 x 29.00 |
1.50 |
1.50 |
120.00 |
22.00 |
|
40 x 32 |
41.00 x 35.00 |
1.50 |
1.50 |
120.00 |
22.50 |
|
50 x 25 |
53.00 x 29.00 |
1.50 |
1.50 |
160.00 |
28.00 |
|
50 x 32 |
53.00 x 35.00 |
1.50 |
1.50 |
160.00 |
28.50 |
|
50 x 40 |
53.00 x 41.00 |
1.50 |
1.50 |
160.00 |
29.00 |
|
65 x 32 |
70.00 x 35.00 |
2.00 |
1.50 |
210.00 |
37.00 |
|
65 x 40 |
70.00 x 41.00 |
2.00 |
1.50 |
210.00 |
37.50 |
|
65 x 50 |
70.00 x 53.00 |
2.00 |
1.50 |
210.00 |
38.50 |
|
80 x 40 |
85.00 x 41.00 |
2.00 |
1.50 |
260.00 |
45.00 |
|
80 x 50 |
85.00 x 53.00 |
2.00 |
1.50 |
260.00 |
46.00 |
|
80 x 65 |
85.00 x 70.00 |
2.00 |
2.00 |
260.00 |
47.50 |
|
100 x 65 |
104.00 x 70.00 |
2.00 |
2.00 |
310.00 |
57.00 |
|
100 x 80 |
104.00 x 85.00 |
2.00 |
2.00 |
310.00 |
57.00 |
