CALOWE
|
Imperial |

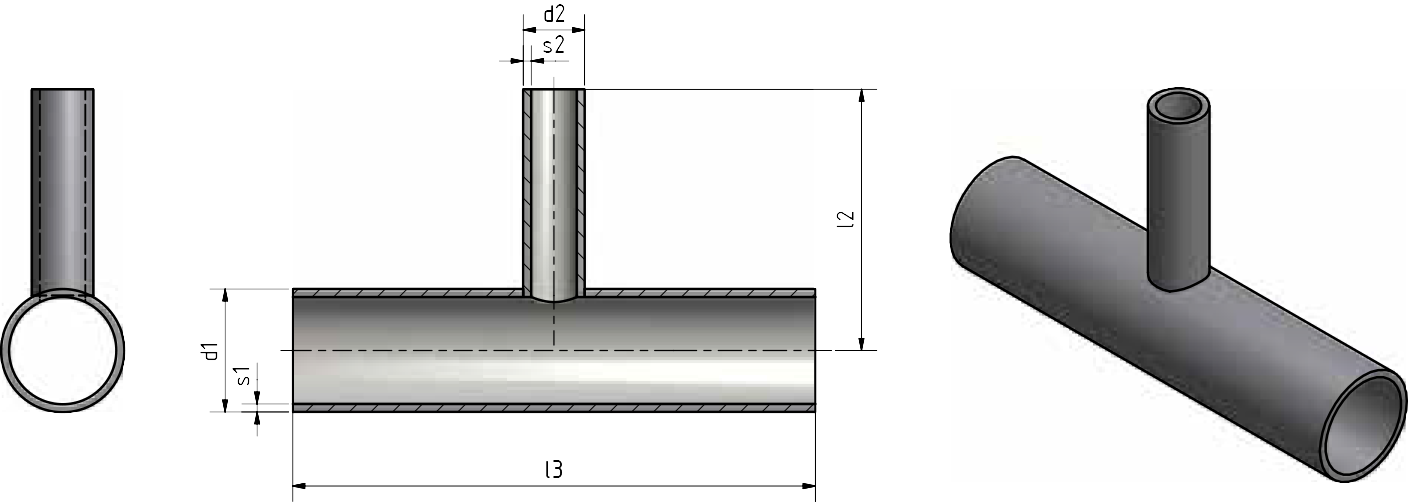

d1 x d2 |
s1 |
s2 |
l3 |
l1 |
|
Cal |
mm |
||||
|
3/8 x 1/4 |
9.53 x 6.35 |
0.89 |
0.89 |
89.00 |
44.50 |
|
1/2 x 1/4 |
12.70 x 6.35 |
1.65 |
0.89 |
101.60 |
47.60 |
|
1/2 x 3/8 |
12.70 x 9.53 |
1.65 |
0.89 |
101.60 |
47.60 |
|
3/4 x 3/8 |
19.05 x 9.53 |
1.65 |
0.89 |
108.00 |
50.80 |
|
3/4 x 1/2 |
19.05 x 12.70 |
1.65 |
1.65 |
108.00 |
50.80 |
|
1 x 1/4 |
25.40 x 6.35 |
1.65 |
0.89 |
108.00 |
54.00 |
|
1 x 3/8 |
25.40 x 9.53 |
1.65 |
0.89 |
108.00 |
54.00 |
|
1 x 1/2 |
25.40 x 12.70 |
1.65 |
1.65 |
108.00 |
54.00 |
|
1 x 3/4 |
25.40 x 19.05 |
1.65 |
1.65 |
108.00 |
54.00 |
|
1 1/2 x 1/2 |
38.10 x 12.70 |
1.65 |
1.65 |
120.60 |
60.30 |
|
1 1/2 x 3/4 |
38.10 x 19.05 |
1.65 |
1.65 |
120.60 |
60.30 |
|
1 1/2 x 1 |
38.10 x 25.40 |
1.65 |
1.65 |
120.60 |
60.30 |
|
2 x 1/2 |
50.80 x 12.70 |
1.65 |
1.65 |
146.00 |
66.70 |
|
2 x 3/4 |
50.80 x 19.05 |
1.65 |
1.65 |
146.00 |
66.70 |
|
2 x 1 |
50.80 x 25.40 |
1.65 |
1.65 |
146.00 |
66.70 |
|
2 x 1 1/2 |
50.80 x 38.10 |
1.65 |
1.65 |
146.00 |
66.70 |
|
2 1/2 x 1/2 |
63.50 x 12.70 |
1.65 |
1.24 |
158.80 |
73.00 |
|
2 1/2 x 1/2 |
63.50 x 12.70 |
1.65 |
1.65 |
158.80 |
73.00 |
|
2 1/2 x 3/4 |
63.50 x 19.05 |
1.65 |
1.65 |
158.80 |
73.00 |
|
2 1/2 x 1 |
63.50 x 25.40 |
1.65 |
1.65 |
158.80 |
73.00 |
|
2 1/2 x 1 1/2 |
63.50 x 38.10 |
1.65 |
1.65 |
158.80 |
73.00 |
|
2 1/2 x 2 |
63.50 x 50.80 |
1.65 |
1.65 |
158.80 |
73.00 |
|
3 x 1/2 |
76.20 x 12.70 |
1.65 |
1.24 |
171.50 |
79.40 |
|
3 x 1/2 |
76.20 x 12.70 |
1.65 |
1.65 |
171.50 |
79.40 |
|
3 x 3/4 |
76.20 x 19.05 |
1.65 |
1.65 |
171.50 |
79.40 |
|
3 x 1 |
76.20 x 25.40 |
1.65 |
1.65 |
171.50 |
79.40 |
|
3 x 1 1/2 |
76.20 x 38.10 |
1.65 |
1.65 |
171.50 |
79.40 |
|
3 x 2 |
76.20 x 50.80 |
1.65 |
1.65 |
171.50 |
79.40 |
|
3 x 2 1/2 |
76.20 x 63.50 |
1.65 |
1.65 |
171.50 |
79.40 |
|
4 x 1/2 |
101.60 x 12.70 |
2.11 |
1.24 |
209.60 |
92.10 |
|
4 x 1/2 |
101.60 x 12.70 |
2.11 |
1.65 |
209.60 |
92.10 |
|
4 x 3/4 |
101.60 x 19.05 |
2.11 |
1.65 |
209.60 |
92.10 |
|
4 x 1 |
101.60 x 25.40 |
2.11 |
1.65 |
209.60 |
92.10 |
|
4 x 1 1/2 |
101.60 x 38.10 |
2.11 |
1.65 |
209.60 |
92.10 |
|
4 x 2 |
101.60 x 50.80 |
2.11 |
1.65 |
209.60 |
98.40 |
|
4 x 2 1/2 |
101.60 x 63.50 |
2.11 |
1.65 |
209.60 |
98.40 |
|
4 x 3 |
101.60 x 76.20 |
2.11 |
1.65 |
209.60 |
98.40 |
|
6 x 4 |
152.40 x 101.60 |
2.77 |
2.11 |
209.60 |
130.20 |
ISO / DIN 11865
|
ISO/DIN 11865 |
d1 x d2 |
s1 |
s2 |
l3 |
l2 |
|
DN/NW |
mm |
||||
|
10 x 8 |
17.20 x 13.50 |
1.60 |
1.60 |
68.00 |
34.00 |
|
15 x 8 |
21.30 x 13.50 |
1.60 |
1.60 |
72.00 |
36.00 |
|
15 x 10 |
21.30 x 17.20 |
1.60 |
1.60 |
72.00 |
36.00 |
|
20 x 8 |
26.90 x 13.50 |
1.60 |
1.60 |
110.00 |
55.00 |
|
20 x 10 |
26.90 x 17.20 |
1.60 |
1.60 |
110.00 |
55.00 |
|
20 x 15 |
26.90 x 21.30 |
1.60 |
1.60 |
110.00 |
55.00 |
|
25 x 10 |
33.70 x 17.20 |
2.00 |
1.60 |
120.00 |
60.00 |
|
25 x 15 |
33.70 x 21.30 |
2.00 |
1.60 |
120.00 |
60.00 |
|
25 x 20 |
33.70 x 26.90 |
2.00 |
1.60 |
120.00 |
60.00 |
|
32 x 15 |
42.40 x 21.30 |
2.00 |
1.60 |
130.00 |
65.00 |
|
32 x 20 |
42.40 x 26.90 |
2.00 |
1.60 |
130.00 |
65.00 |
|
32 x 25 |
42.40 x 33.70 |
2.00 |
2.00 |
130.00 |
65.00 |
|
40 x 15 |
48.30 x 21.30 |
2.00 |
1.60 |
130.00 |
65.00 |
|
40 x 20 |
48.30 x 26.90 |
2.00 |
1.60 |
130.00 |
65.00 |
|
40 x 25 |
48.30 x 33.70 |
2.00 |
2.00 |
130.00 |
65.00 |
|
40 x 32 |
48.30 x 42.40 |
2.00 |
2.00 |
130.00 |
65.00 |
|
50 x 20 |
60.30 x 26.90 |
2.00 |
1.60 |
180.00 |
90.00 |
|
50 x 25 |
60.30 x 33.70 |
2.00 |
2.00 |
180.00 |
90.00 |
|
50 x 32 |
60.30 x 42.40 |
2.00 |
2.00 |
180.00 |
90.00 |
|
50 x 40 |
60.30 x 48.30 |
2.00 |
2.00 |
180.00 |
90.00 |
|
65 x 25 |
76.10 x 33.70 |
2.00 |
2.00 |
220.00 |
90.00 |
|
65 x 32 |
76.10 x 42.40 |
2.00 |
2.00 |
220.00 |
90.00 |
|
65 x 40 |
76.10 x 48.30 |
2.00 |
2.00 |
220.00 |
90.00 |
|
65 x 50 |
76.10 x 60.30 |
2.00 |
2.00 |
220.00 |
90.00 |
|
80 x 32 |
88.90 x 42.40 |
2.30 |
2.00 |
260.00 |
110.00 |
|
80 x 40 |
88.90 x 48.30 |
2.30 |
2.00 |
260.00 |
110.00 |
|
80 x 50 |
88.90 x 60.30 |
2.30 |
2.00 |
260.00 |
110.00 |
|
80 x 65 |
88.90 x 76.10 |
2.30 |
2.00 |
260.00 |
110.00 |
|
100 x 50 |
114.30 x 60.30 |
2.30 |
2.00 |
320.00 |
130.00 |
|
100 x 65 |
114.30 x 76.10 |
2.30 |
2.00 |
320.00 |
130.00 |
|
100 x 80 |
114.30 x 88.90 |
2.30 |
2.30 |
320.00 |
130.00 |
METRYCZNE / DIN 11865
|
Metryczny/DIN 11865 |
d1 x d2 |
s1 |
s2 |
l3 |
l2 |
|
DN/NW |
mm |
||||
|
6 x 4 |
8.00 x 6.00 |
1.00 |
1.00 |
60.00 |
30.00 |
|
8 x 6 |
10.00 x 8.00 |
1.00 |
1.00 |
60.00 |
30.00 |
|
10 x 6 |
12.00 x 8.00 |
1.00 |
1.00 |
70.00 |
35.00 |
|
10 x 8 |
12.00 x 10.00 |
1.00 |
1.00 |
70.00 |
35.00 |
|
10 x 6 |
13.00 x 8.00 |
1.50 |
1.00 |
60.00 |
35.00 |
|
10 x 8 |
13.00 x 10.00 |
1.50 |
1.00 |
60.00 |
30.00 |
|
15 x 10 |
19.00 x 10.00 |
1.50 |
1.00 |
70.00 |
35.00 |
|
15 x 10 |
19.00 x 12.00 |
1.50 |
1.00 |
70.00 |
35.00 |
|
15 x 10 |
19.00 x 13.00 |
1.50 |
1.50 |
70.00 |
35.00 |
|
20 x 10 |
23.00 x 12.00 |
1.50 |
1.00 |
80.00 |
40.00 |
|
20 x 10 |
23.00 x 13.00 |
1.50 |
1.50 |
80.00 |
40.00 |
|
20 x 15 |
23.00 x 19.00 |
1.50 |
1.50 |
80.00 |
40.00 |
|
25 x 10 |
29.00 x 13.00 |
1.50 |
1.50 |
100.00 |
50.00 |
|
25 x 15 |
29.00 x 19.00 |
1.50 |
1.50 |
100.00 |
50.00 |
|
25 x 20 |
29.00 x 23.00 |
1.50 |
1.50 |
100.00 |
50.00 |
|
32 x 15 |
35.00 x 19.00 |
1.50 |
1.50 |
110.00 |
55.00 |
|
32 x 20 |
35.00 x 23.00 |
1.50 |
1.50 |
110.00 |
55.00 |
|
32 x 25 |
35.00 x 29.00 |
1.50 |
1.50 |
110.00 |
55.00 |
|
40 x 20 |
41.00 x 23.00 |
1.50 |
1.50 |
120.00 |
60.00 |
|
40 x 25 |
41.00 x 29.00 |
1.50 |
1.50 |
120.00 |
60.00 |
|
40 x 32 |
41.00 x 35.00 |
1.50 |
1.50 |
120.00 |
60.00 |
|
50 x 25 |
53.00 x 29.00 |
1.50 |
1.50 |
160.00 |
80.00 |
|
50 x 32 |
53.00 x 35.00 |
1.50 |
1.50 |
160.00 |
80.00 |
|
50 x 40 |
53.00 x 41.00 |
1.50 |
1.50 |
160.00 |
80.00 |
|
65 x 32 |
70.00 x 35.00 |
2.00 |
1.50 |
210.00 |
80.00 |
|
65 x 40 |
70.00 x 41.00 |
2.00 |
1.50 |
210.00 |
80.00 |
|
65 x 50 |
70.00 x 53.00 |
2.00 |
1.50 |
210.00 |
80.00 |
|
80 x 40 |
85.00 x 41.00 |
2.00 |
1.50 |
260.00 |
105.00 |
|
80 x 50 |
85.00 x 53.00 |
2.00 |
1.50 |
260.00 |
105.00 |
|
80 x 65 |
85.00 x 70.00 |
2.00 |
2.00 |
260.00 |
105.00 |
|
100 x 50 |
104.00 x 53.00 |
2.00 |
2.00 |
310.00 |
130.00 |
|
100 x 65 |
104.00 x 70.00 |
2.00 |
2.00 |
310.00 |
130.00 |
|
100 x 80 |
104.00 x 85.00 |
2.00 |
2.00 |
310.00 |
130.00 |
|
150 x 100 |
154.00 x 104.00 |
2.00 |
2.00 |
450.00 |
187.50 |
