CALOWE
|
Imperial |

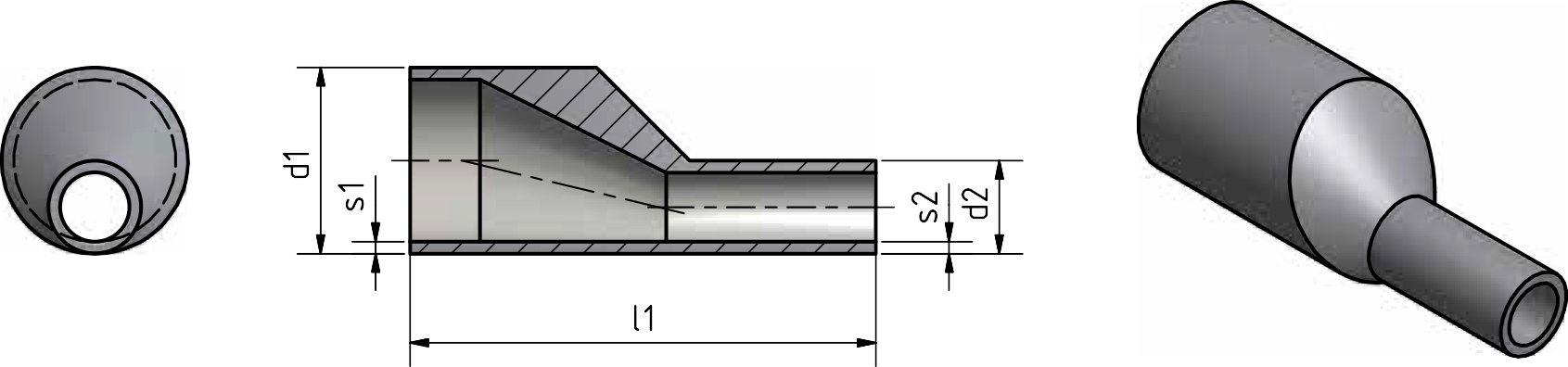

d1 x d2 |
s1 |
s2 |
l1 |
|
Cal |
mm |
|||
|
1/2 x 1/4 |
12.70 x 6.35 |
1.65 |
0.89 |
47.63 |
|
1/2 x 3/8 |
12.70 x 9.53 |
1.65 |
0.89 |
47.63 |
|
3/4 x 3/8 |
19.05 x 9.53 |
1.65 |
0.89 |
50.80 |
|
3/4 x 1/2 |
19.05 x 12.70 |
1.65 |
1.65 |
53.98 |
|
1 x 1/2 |
25.40 x 12.70 |
1.65 |
1.65 |
63.50 |
|
1 x 3/4 |
25.40 x 19.05 |
1.65 |
1.65 |
53.98 |
|
1 1/2 x 1/2 |
38.10 x 12.70 |
1.65 |
1.65 |
80.00 |
|
1 1/2 x 3/4 |
38.10 x 19.05 |
1.65 |
1.65 |
76.20 |
|
1 1/2x1 |
38.10 x 25.40 |
1.65 |
1.65 |
63.50 |
|
2 x 1 |
50.80 x 25.40 |
1.65 |
1.65 |
85.73 |
|
2 x 1 1/2 |
50.80 x 38.10 |
1.65 |
1.65 |
63.50 |
|
2 1/2 x 1 |
63.50 x 25.40 |
1.65 |
1.65 |
100.00 |
|
2 1/2 x 1 1/2 |
63.50 x 38.10 |
1.65 |
1.65 |
85.73 |
|
2 1/2 x 2 |
63.50 x 50.80 |
1.65 |
1.65 |
63.50 |
|
3 x 1 1/2 |
76.20 x 38.10 |
1.65 |
1.65 |
107.95 |
|
3 x 2 |
76.20 x 50.80 |
1.65 |
1.65 |
85.73 |
|
3 x 2 1/2 |
76.20 x 63.50 |
1.65 |
1.65 |
66.68 |
|
4 x 2 |
101.60 x 50.80 |
2.11 |
1.65 |
130.18 |
|
4 x 2 1/2 |
101.60 x 63.50 |
2.11 |
1.65 |
107.95 |
|
4 x 3 |
101.60 x 76.20 |
2.11 |
1.65 |
98.43 |
|
6 x 3 |
152.40 x 76.20 |
2.77 |
1.65 |
184.15 |
|
6 x 4 |
152.40 x 101.60 |
2.77 |
2.11 |
142.88 |
ISO / DIN 11865
|
ISO/DIN 11865 |
d1 x d2 |
s1 |
s2 |
l1 |
|
DN/NW |
mm |
|||
|
10 x 8 |
17.20 x 13.50 |
1.60 |
1.60 |
60.00 |
|
15 x 8 |
21.30 x 13.50 |
1.60 |
1.60 |
60.00 |
|
15 x 10 |
21.30 x 17.20 |
1.60 |
1.60 |
60.00 |
|
20 x 8 |
26.90 x 13.50 |
1.60 |
1.60 |
60.00 |
|
20 x 10 |
26.90 x 17.20 |
1.60 |
1.60 |
60.00 |
|
20 x 15 |
26.90 x 21.30 |
1.60 |
1.60 |
60.00 |
|
25 x 15 |
33.70 x 21.30 |
2.00 |
1.60 |
70.00 |
|
25 x 20 |
33.70 x 26.90 |
2.00 |
1.60 |
70.00 |
|
32 x 15 |
42.40 x 21.30 |
2.00 |
1.60 |
80.00 |
|
32 x 20 |
42.40 x 26.90 |
2.00 |
1.60 |
80.00 |
|
32 x 25 |
42.40 x 33.70 |
2.00 |
2.00 |
80.00 |
|
40 x 15 |
48.30 x 21.30 |
2.00 |
1.60 |
90.00 |
|
40 x 20 |
48.30 x 26.90 |
2.00 |
1.60 |
90.00 |
|
40 x 25 |
48.30 x 33.70 |
2.00 |
2.00 |
90.00 |
|
40 x 32 |
48.30 x 42.40 |
2.00 |
2.00 |
90.00 |
|
50 x20 |
60.30 x 26.90 |
2.00 |
1.60 |
100.00 |
|
50 x 25 |
60.30 x 33.70 |
2.00 |
2.00 |
100.00 |
|
50 x 32 |
60.30 x 42.40 |
2.00 |
2.00 |
100.00 |
|
50 x 40 |
60.30 x 48.30 |
2.00 |
2.00 |
100.00 |
|
65 x 25 |
76.10 x 33.70 |
2.00 |
2.00 |
110.00 |
|
65 x 40 |
76.10 x 48.30 |
2.00 |
2.00 |
110.00 |
|
65 x 50 |
76.10 x 60.30 |
2.00 |
2.00 |
110.00 |
|
80 x 50 |
88.90 x 60.30 |
2.30 |
2.00 |
110.00 |
|
80 x 65 |
88.90 x 76.10 |
2.30 |
2.00 |
110.00 |
|
100 x 65 |
114.30 x 76.10 |
2.30 |
2.00 |
135.00 |
|
100 x 80 |
114.30 x 88.90 |
2.30 |
2.30 |
135.00 |
|
150 x 100 |
168.30 x 114.30 |
2.60 |
2.30 |
170.00 |
METRYCZNE / DIN 11865
|
Metryczny/DIN 11865 |
d1 x d2 |
s1 |
s2 |
l1 |
|
DN/NW |
mm |
|||
|
8 x 6 |
10.00 x 8.00 |
1.00 |
1.00 |
38.00 |
|
10 x 6 |
13.00 x 8.00 |
1.50 |
1.00 |
38.00 |
|
10 x 8 |
13.00 x 10.00 |
1.50 |
1.00 |
38.00 |
|
15 x 8 |
19.00 x 10.00 |
1.50 |
1.00 |
60.00 |
|
15 x 10 |
19.00 x 13.00 |
1.50 |
1.50 |
60.00 |
|
20 x 10 |
23.00 x 13.00 |
1.50 |
1.50 |
60.00 |
|
20 x 15 |
23.00 x 19.00 |
1.50 |
1.50 |
60.00 |
|
25 x 15 |
29.00 x 19.00 |
1.50 |
1.50 |
70.00 |
|
25 x 20 |
29.00 x 23.00 |
1.50 |
1.50 |
70.00 |
|
32 x 15 |
35.00 x 19.00 |
1.50 |
1.50 |
80.00 |
|
32 x 20 |
35.00 x 23.00 |
1.50 |
1.50 |
80.00 |
|
32 x 25 |
35.00 x 29.00 |
1.50 |
1.50 |
80.00 |
|
40 x 20 |
41.00 x 23.00 |
1.50 |
1.50 |
90.00 |
|
40 x 25 |
41.00 x 29.00 |
1.50 |
1.50 |
90.00 |
|
40 x 32 |
41.00 x 35.00 |
1.50 |
1.50 |
90.00 |
|
50 x 25 |
53.00 x 29.00 |
1.50 |
1.50 |
90.00 |
|
50 x 32 |
53.00 x 35.00 |
1.50 |
1.50 |
90.00 |
|
50 x 40 |
53.00 x 41.00 |
1.50 |
1.50 |
90.00 |
|
65 x 40 |
70.00 x 41.00 |
2.00 |
1.50 |
110.00 |
|
65 x 50 |
70.00 x 53.00 |
2.00 |
1.50 |
110.00 |
|
80 x 50 |
85.00 x 53.00 |
2.00 |
1.50 |
110.00 |
|
80 x 65 |
85.00 x 70.00 |
2.00 |
2.00 |
110.00 |
|
100 x 65 |
104.00 x 70.00 |
2.00 |
2.00 |
135.00 |
|
100 x 80 |
104.00 x 85.00 |
2.00 |
2.00 |
135.00 |
|
150 x 80 |
154.00 x 85.00 |
2.00 |
2.00 |
170.00 |
|
150 x 100 |
154.00 x 104.00 |
2.00 |
2.00 |
170.00 |
